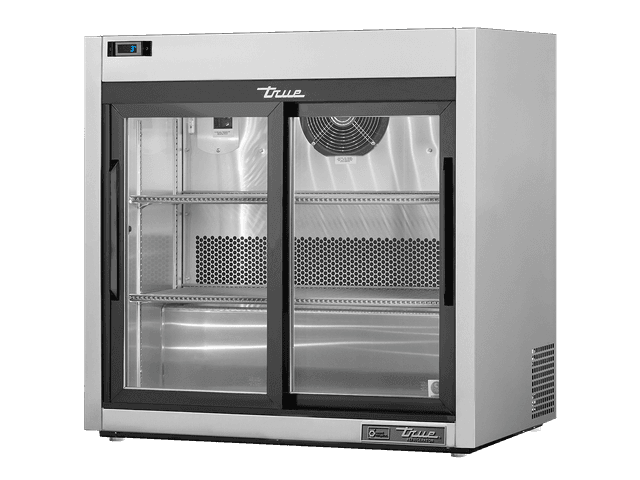

TSD-09G-HC-LD
TSD-Series, Glass Door Display
Counter-Top Retail Merchandiser Refrigerator, 2 Glass Slide Doors
ENERGY CALCULATOR
GET QUOTE
We’re available
Whether you’re looking for practical refrigeration advice or need product support, we’re always here to help. Contact us below.
Talk to Specialist- External Width (mm)913
- External Depth (mm) 532
- External Height (mm)911
- Exclusions Depth does not include 10 mm for door handle or 13 mm for rear access panel.
- Net Volume (Litres)140
- Gross Volume (Litres) 232
- Supplied Shelves 3
- Shelf Size (L x D mm)Two 807 x 345 + One 807 x 191
- Internal Net Height (mm) 720
- Unpackaged Weight (kg)89
- Packaged Weight (kg) 100
- Packaged Dimensions (W x D x H mm)1016 x 623 x 1245
- Clearance Required 26 mm rear, 26 mm right side.
- Door Description 2 Full Glass Slide Doors
- Cord Length2.74
- Interior Construction Clear coated aluminium, stainless steel base
- Exterior ConstructionAluminium front, sides and rear
- Standard Locks Not Standard. Options available.
- Internal LightingLED
- Air Intake Position Right side
- Ventilation PositionRear
- Operating StatementTested at 25°C, 60% RH, per ‘Refrigerators with a Direct Sales Function’ for perishable food merchandising.
- Refrigerant R290
- amps1.5
- Defrost Type Auto
- EEI12.5
- EEC B
- kWh/24hr1.75
- kWh/Annum 641
- Temperature Holding0.5 : 3.3°C
- Testing Standard EN 23953
- Wattage 345
- Voltage{"230v 50Hz": "●"}
